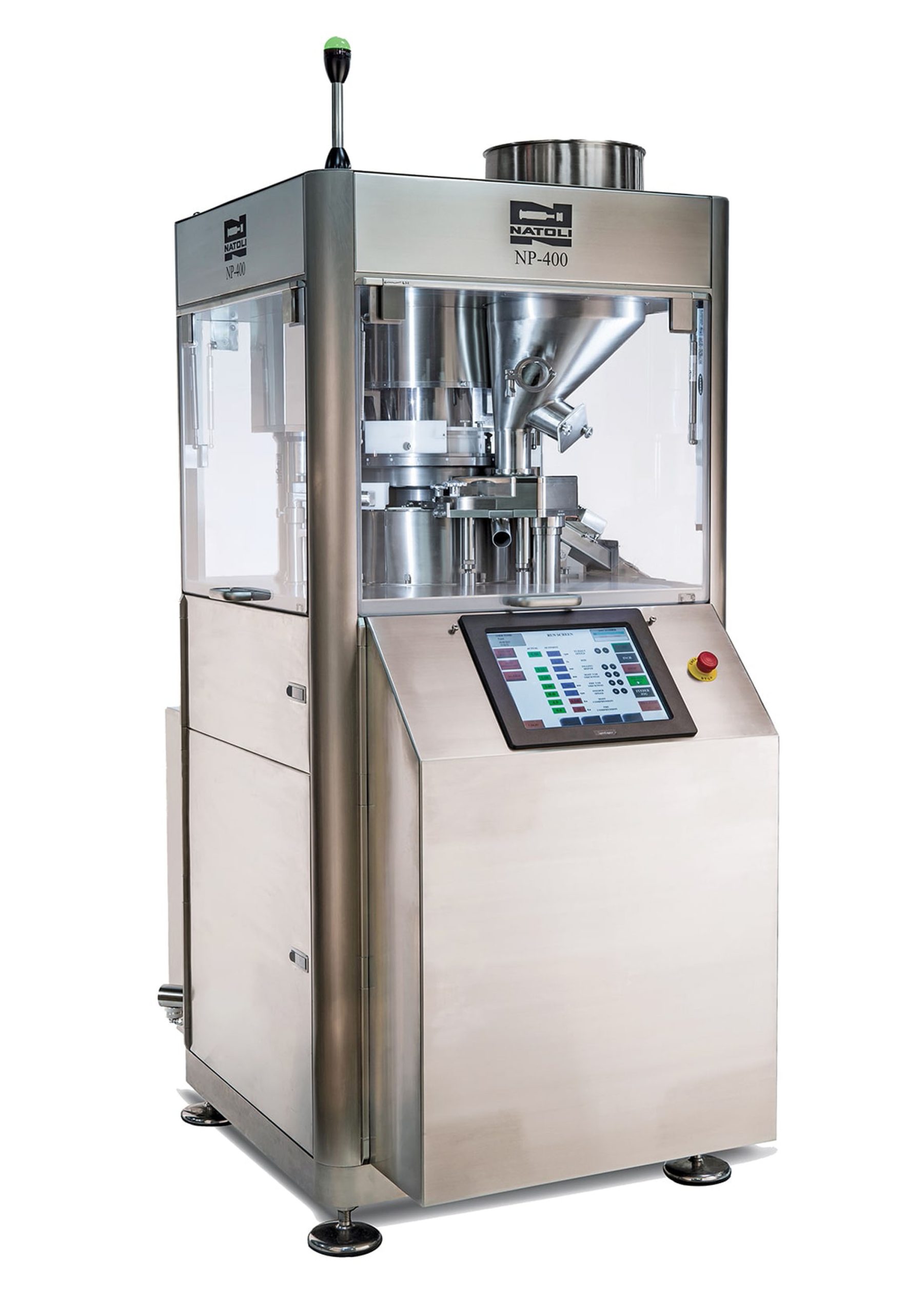

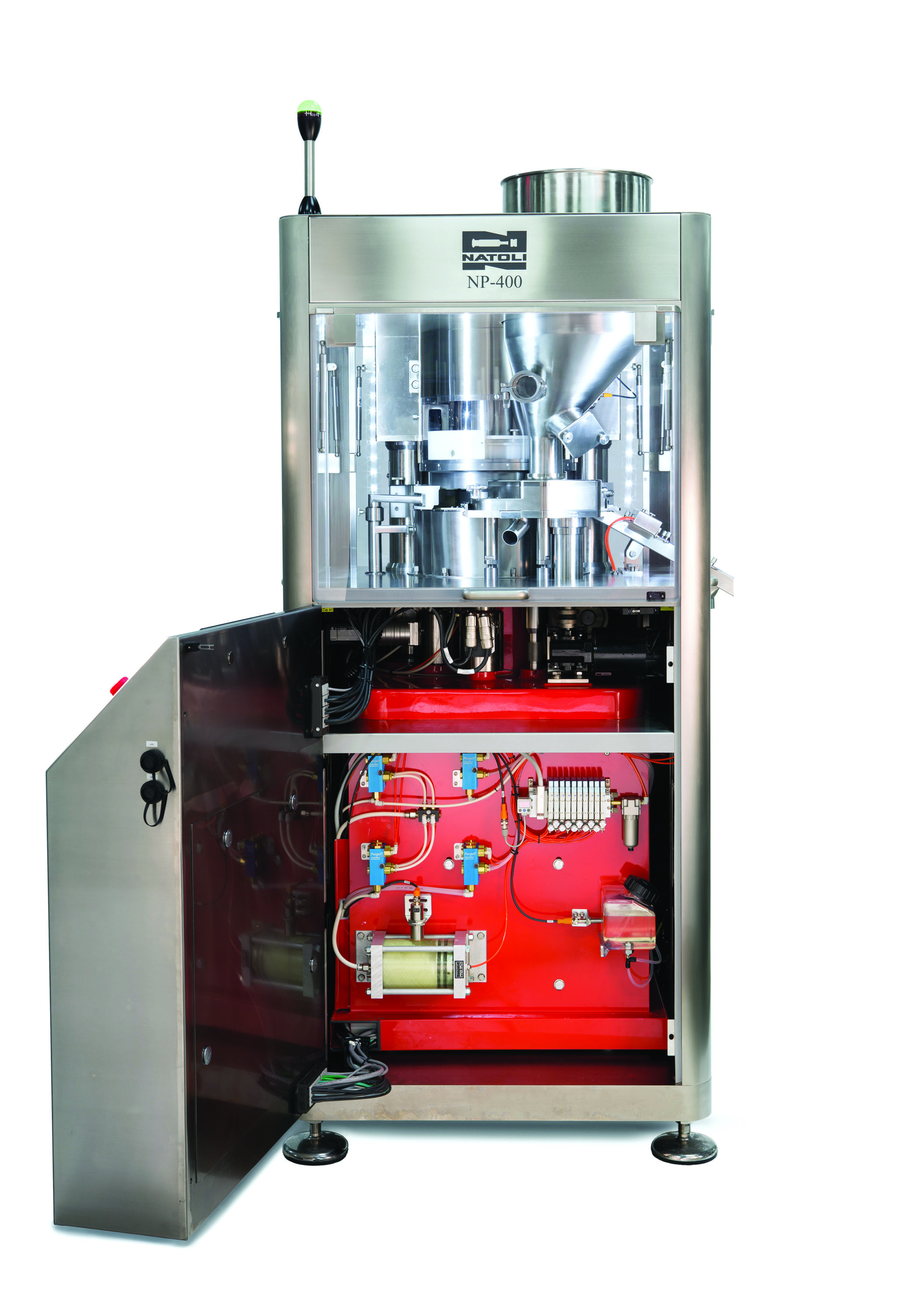

NP-400

Robust and Powerful Medium-Output Workhorse

Designed, engineered, and manufactured in the USA, the NP-400 rotary tablet press is ideal for highly efficient tablet production. Equipped with a long list of standard features, the NP-400 is a low-maintenance tablet press with enhanced capabilities that allow press operators to simply setup and walk away.

AUTOMATIC WEIGHT CONTROL
Improves product quality and consistency while reducing waste

INTUITIVE MENU CONTROL
Easily save and recall product menu settings and parameters for automatic press setup

Get a quote or download our brochure today.

  • GMP-compliant Compression Zone
  • Instrumented Force Monitoring
  • Combination caster/levelers
  • Push-button, Self-adjusting Lower Punch Retainers
  • Servo-driven Adjustments
  • Dual-Paddle Force Feeder w/Angled Plow Design
  • Automatic Lubrication System
  • Punch Head Grease Delivery

The NP-400 Tablet Press increased our customer’s revenue potential by $46,395 per hour over their existing Beta Presses.

VIEW THE CASE STUDY

Natoli AIM™ Control System

Designed for user-friendly and trouble-free operation, the tried and proven Natoli AIM™ Control System acquires and reports critical tablet production data in an integrated 21 CFR Part 11–compliant system architecture.

Natoli AIM™ Tracks & Reports:

  • Force deviation during batch production
  • All produced tablets in the following categories: setup, batch, or rejected tablets
  • Critical alarms, starts, stops, and error codes per batch
  • Batch and end-of-batch production data
  • Batch RSD monitoring for product variation

NP-400 TABLET PRESS SPECIFICATIONS:

22 Station28 Station32 Station
Tooling Sizes
Punch TypeEU 1″ / TSM D / MDT-25EU19 / TSM B / MDT-19EU19 / TSM B / MDT-19
Die TypeDBBB
Tablet Capacities
Max. Depth of Fill20.6 mm (0.8125″)17.5 mm (0.6875″)17.5 mm (0.6875″)
Max. Round Diameter23.8 mm (0.9375″)17.5 mm (0.6875″)16.0 mm (0.6250″)
Shaped Major Dimension25.4 mm (1.0000″)19.0 mm (0.7500″)16.0 mm (0.6250″)
Main Upper Punch Penetration0-6.35 mm
Pre Upper Punch Penetration0-6.35 mm
Operating Forces
Max. Main Comp. Force90 kN
Max. Pre Comp. Force8.9 kN
Pitch Circle Diameter292 mm
Production
Feeder Paddle Speed5-160 rpm
Turret Speed10-100 rpm
Tablets Per Hour13,200—132,00016,800—168,00019,200—192,000
