NP-RD10A — R&D Tablet Press for Early-Stage Compaction Analysis

Unlock meaningful compaction data from minimal API.

The Natoli NP-RD10A is a single-station tablet press designed for early-stage formulation development, giving researchers precise control over compression conditions and deep insight into tablet compaction behavior — even with limited quantities of API.

Evaluate formulations, optimize tablet properties, and identify potential issues early. When paired with AIM™ Pro, the NP-RD10A becomes a data-driven compaction research platform supporting advanced R&D, USP <1062> studies, and formulation screening.

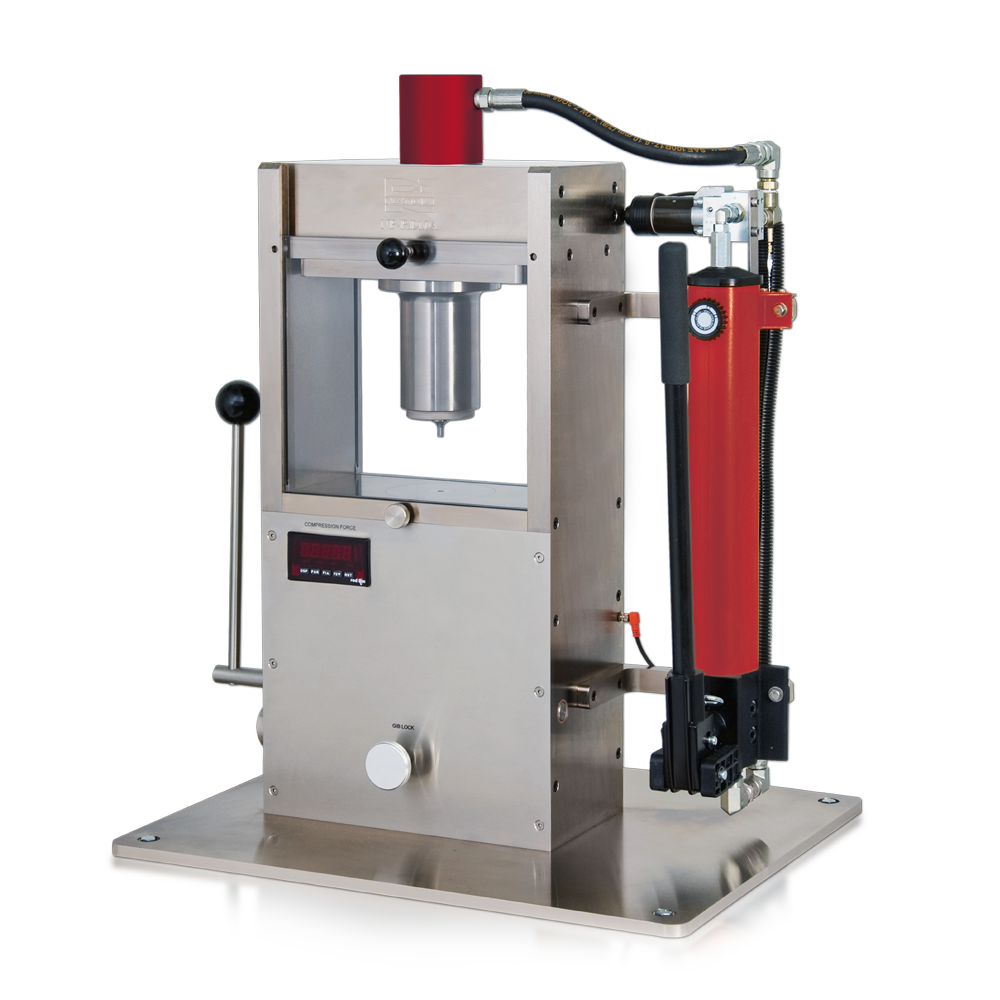

NP-RD10A
Hydraulic Tablet Press Machine from Natoli Engineering
close up of rd10 tablet press tooling
close up of punch tip on the rd10a tablet press machine
natoli engineering worker working on research and development for pill press machine
Hydraulic Tablet Press Machine and Natoli CAD program

Built for Early-Stage Formulation Development

Designed for precision, control, and efficiency in laboratory environments.

  • Generate compaction data from minimal material
  • Preserve valuable API during early-stage testing
  • Evaluate formulation behavior before scale-up
  • Bench-top format for flexible lab integration
Request a Demo

Analyze Compaction Behavior with Precision

Capture how materials respond to compression under controlled laboratory conditions.

  • Monitor compression and ejection forces
  • Measure tablet strength and mechanical properties
  • Study formulation performance across compression settings
  • Programmable compression parameters for controlled experimentation

Identify tableting issues early:

  • Capping and lamination
  • Sticking and picking
  • Weight and hardness variability

Turn Data Into Formulation Insight with AIM™ Pro

Pair the NP-RD10A with AIM™ Pro to unlock advanced compaction analysis.

  • Generate tabletability, compactibility, and compressibility profiles
  • Evaluate formulation performance with structured data
  • Support USP <1062> compaction studies
  • Store results in a SQL-driven database for reproducible research

Experience real compaction science — not just tablet pressing.

Learn more about AIM™ Pro

Make Confident, Data-Driven Decisions

Move from trial-and-error to predictive formulation development.

  • Screen multiple formulations quickly
  • Optimize tablet properties before pilot scale
  • Reduce development timelines and material waste
  • Improve scale-up success

Designed for Accurate, Repeatable Research

Built to deliver consistent, controlled experimental conditions.

  • Independent compression control for hardness, thickness, and weight
  • Micro-adjustable depth of fill for precise dosing
  • Multi-layer tablet capability
  • Up to 85 kN compression force
  • Tooling changeover in under two minutes
  • Compatible with TSM and EU B, D, and F tooling

Applications

  • Early-stage formulation development
  • API compaction studies
  • Tablet defect troubleshooting
  • Material characterization
  • Academic and training laboratories

Technical Overview

  • Machine Type: Single-station analytical tablet press
  • Compression Force: Up to 85 kN
  • Tooling: TSM / EU B, D, F
  • Tablet Capability: Single- and multi-layer
  • Data Monitoring: Compression and ejection force
  • Format: Bench-top

From Research to Production

The NP-RD10A provides the foundation for scale-up success.

Formulation Research → NP-RD10A → Pilot Development → Production

See What Your Formulation Is Really Doing

Test, analyze, and optimize with precision.

Request a Demo

Request a Quote or Demonstration

Connect with Natoli’s technical team to discuss pricing, compatibility, or a live demonstration of the NP-RD10A for your research and development environment.
